Shunto GI High Tensile Specification | |
|---|---|
Material | Hot Dipped Zincd Coating |
Thickness (mm) | 0.5, 0.6, 0.8, 1.0 &1.2 |
Standard | International Standard AS 1397 or JIS G3302 |
Min Yield Strength | G550 Mpa |
Min. Zinc Coating | 180g/m2 |
C-Section Dimension (mm) | ||||
|---|---|---|---|---|
C-Section Identification | Thickness | Depth, D | Width, B | Lip, L |
SC 100120 | 1.2 | 100 | 35 | 13 |
SC 100100 | 1 | 100 | 35 | 13 |
SC 100080 | 0.8 | 100 | 35 | 13 |
SC 75120 | 1.2 | 75 | 35 | 13 |
SC 75100 | 1 | 75 | 35 | 13 |
SC 750800 | 0.8 | 75 | 35 | 13 |
SC 50120 | 1.2 | 50 | 35 | 12 |
SC 50100 | 1 | 50 | 35 | 12 |
SC 50080 | 0.8 | 50 | 35 | 12 |
 |

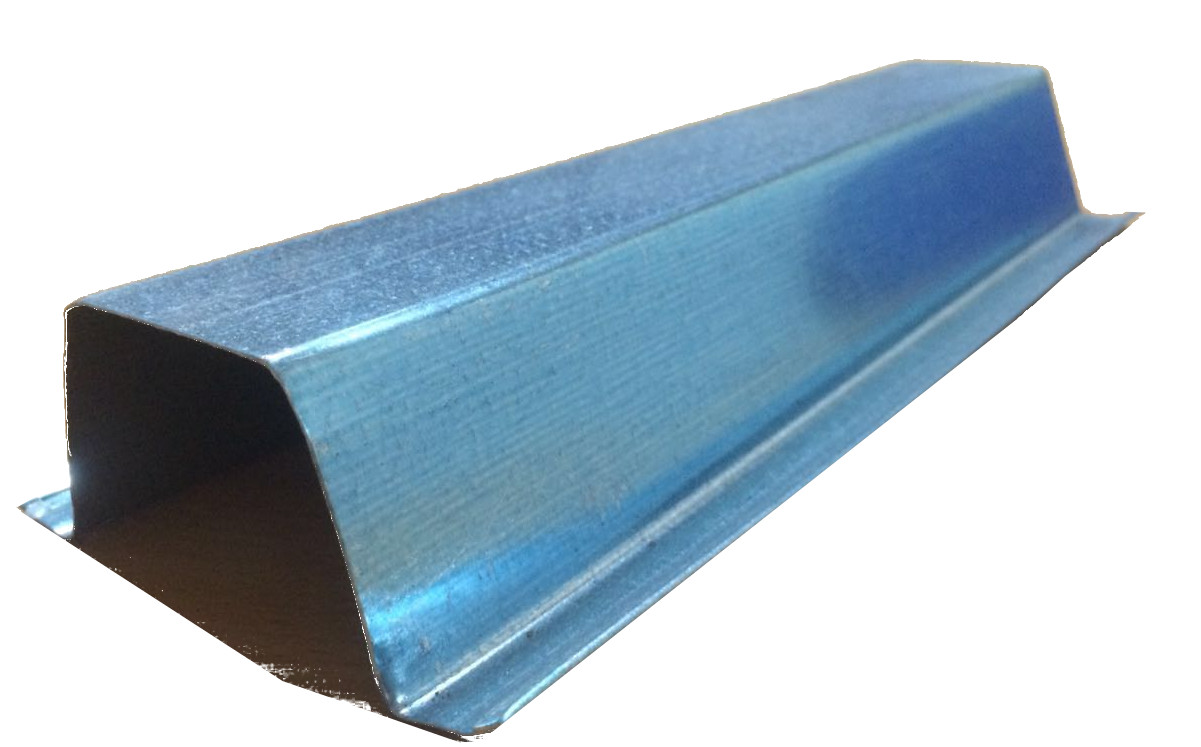

| Batten-Section Dimension (mm) | |||||
|---|---|---|---|---|---|
| Batten-Section Identification | Thickness | a | b | c | d |
| SB 4060 | 0.6 | 40 | 40 | 48 | 76 |
| SB 4050 | 0.5 | 40 | 40 | 48 | 76 |
| SB 2560 | 0.6 | 25 | 30 | 36 | 60 |
| SB 2550 | 0.5 | 25 | 30 | 36 | 60 |
 |
